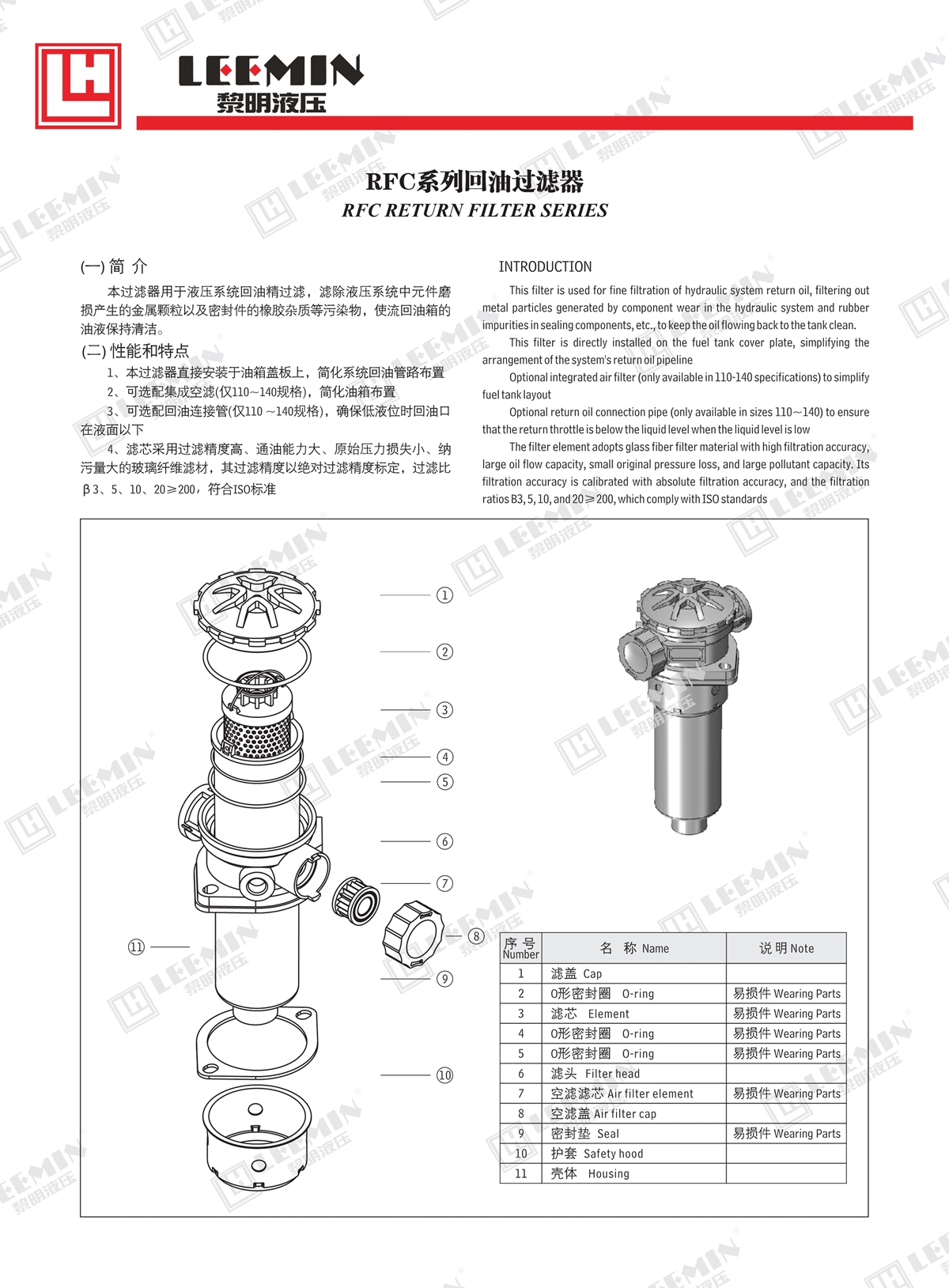

RFC RETURN FILTER SERIES

    This filter is used for fine filtration of hydraulic system return oil, filtering out metal particles generated by component wear in the hydraulic system and rubber impurities in sealing components, etc., to keep the oil flowing back to the tank clean.

    This filter is directly installed on the fuel tank cover plate, simplifying the arrangement of the system's return oil pipeline

    Optional integrated air filter (only available in 110-140 specifications) to simplify fuel tank layout

    Optional return oil connection pipe (only available in sizes 110~140) to ensure that the return throttle is below the liquid level when the liquid level is low

    The filter element adopts glass fiber filter material with high filtration accuracy, large oil flow capacity, small original pressure loss, and large pollutant capacity. Its filtration accuracy is calibrated with absolute filtration accuracy, and the filtration ratios B3, 5, 10, and 20≥200, which comply with ISO standards
